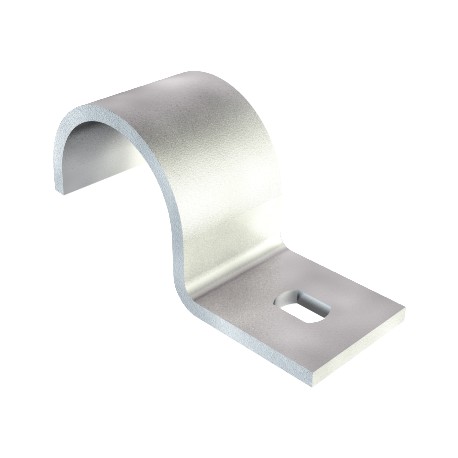

822 6 FT 1014005 OBO BETTERMANN Attaching clip single lobe, 6mm, Hot-dip galvanised, DIN EN ISO 1461, Steel,..
822 6 FT
1014005
OBO BETTERMANN
100 Pcs.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann 822 6 FT attaching clip single lobe fastens small conduits and pneumatic lines safely onto heavy industrial plant infrastructure. Hot-dip galvanised fasteners deliver dependable performance and protect against corrosion in exposed plant areas. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0225 kg CO2e / 1 Piece
- Dimension: 6mm
- Dimension A: 10 mm
- Dimension b: 20 mm
- Dimension D: 6 mm
- Dimension H: 5 mm
- Dimension L: 23,5 mm
- Dimension L1: 32 mm
- Dimension t: 2 mm
- Distance to the wall: no
- Fastening type: Screw hole
- For diameter: 6
- Halogen-free: yes
- Height: 5 mm
- Hole size: 6,5 x 10 mm
- Length: 32 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0225 kg CO2e / 1 Piece |
|---|---|
| Dimension | 6mm |
| Dimension A | 10 mm |
| Dimension b | 20 mm |
| Dimension D | 6 mm |
| Dimension H | 5 mm |
| Dimension L | 23,5 mm |
| Dimension L1 | 32 mm |
| Dimension t | 2 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 6 |
| Halogen-free | yes |
| Height | 5 mm |
|---|---|
| Hole size | 6,5 x 10 mm |
| Length | 32 mm |
| Material | Steel |
| Material thickness | 2 mm |
| Nominal diameter | 6 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Hot-dip galvanised |
| UV-resistant | yes |
| Version for | Single-lobe |
| Width | 20 mm |
