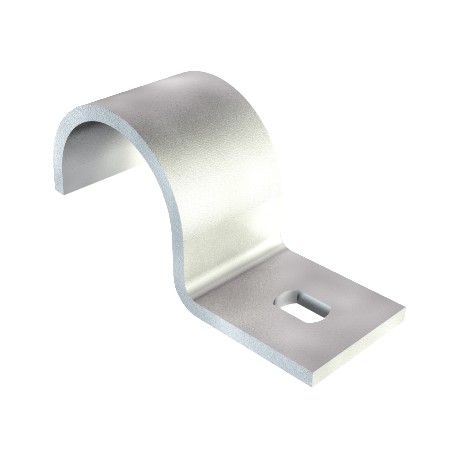

OBO BETTERMANN 822 47 FT 822 47 FT 1014366 OBO BETTERMANN Attaching clip single lobe, 47mm, Hot-dip galvanised, DIN EN ISO 1461, Stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

822 47 FT 1014366 OBO BETTERMANN Attaching clip single lobe, 47mm, Hot-dip galvanised, DIN EN ISO 1461, Stee..

822 47 FT

1014366

OBO BETTERMANN

100 Pcs.

Attaching clip single lobe, 47mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Fastening clip 822, heavy duty, FT. Fastening clip, single-lobe, 47 mm

Cables > Pipe saddle clamp
Pizza metal fixation

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann 822 47 FT attaching clip single lobe fastens heavier runs of piping or conduit securely to walls and support structures in heavy-duty commercial and industrial environments. Single-lobe mounting hardware provides essential mechanical stabilization for conduits and cables against vibration and structural shifts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1614 kg CO2e / 1 Piece
  • Dimension: 47mm
  • Dimension A: 13 mm
  • Dimension b: 25 mm
  • Dimension D: 47 mm
  • Dimension H: 45 mm
  • Dimension L: 30 mm
  • Dimension L1: 81 mm
  • Dimension t: 3 mm
  • Distance to the wall: no
  • Fastening type: Screw hole
  • For diameter: 47
  • Halogen-free: yes
  • Height: 45 mm
  • Hole size: 6,5 x 10 mm
  • Length: 81 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,1614 kg CO2e / 1 Piece
Dimension47mm
Dimension A13 mm
Dimension b25 mm
Dimension D47 mm
Dimension H45 mm
Dimension L30 mm
Dimension L181 mm
Dimension t3 mm
Distance to the wallno
Fastening typeScrew hole
For diameter47
Halogen-freeyes
Height45 mm
Hole size6,5 x 10 mm
Length81 mm
MaterialSteel
Material thickness3 mm
Nominal diameter47 mm
Number of cables/pipes1
Plastic-coveredno
SizePG36
Suitable in fire protection areano
SurfaceHot-dip galvanised
UV-resistantyes
Version forSingle-lobe
Width25 mm
