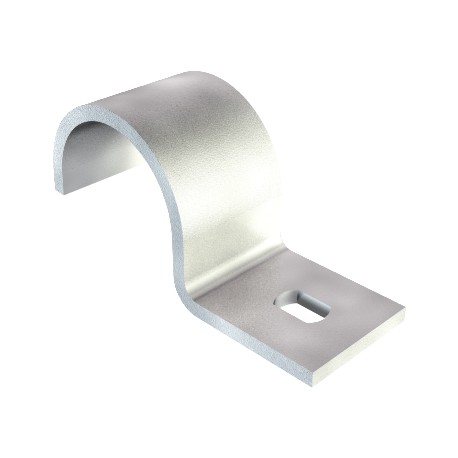

OBO BETTERMANN 822 25 FT 822 25 FT 1014501 OBO BETTERMANN Attaching clip single lobe, 25mm, Hot-dip galvanised, DIN EN ISO 1461, Stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

822 25 FT 1014501 OBO BETTERMANN Attaching clip single lobe, 25mm, Hot-dip galvanised, DIN EN ISO 1461, Stee..

822 25 FT

1014501

OBO BETTERMANN

50 Pcs.

Attaching clip single lobe, 25mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Fastening clip 822, heavy duty, FT. Fastening clip, single-lobe, 25 mm

Cables > Pipe saddle clamp
Pizza metal fixation

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann 822 25 FT Attaching clip single lobe provides heavy-duty retention for conduits and pipes in commercial and industrial settings. Such mounting hardware is engineered to withstand challenging installation environments.

Current pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0735 kg CO2e / 1 Piece
  • Dimension: 25mm
  • Dimension A: 11 mm
  • Dimension b: 20 mm
  • Dimension D: 25 mm
  • Dimension H: 23,5 mm
  • Dimension L: 25,5 mm
  • Dimension L1: 53 mm
  • Dimension t: 3 mm
  • Distance to the wall: no
  • Fastening type: Screw hole
  • For diameter: 25
  • Halogen-free: yes
  • Height: 23,5 mm
  • Hole size: 6,5 x 10 mm
  • Length: 53 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0735 kg CO2e / 1 Piece
Dimension25mm
Dimension A11 mm
Dimension b20 mm
Dimension D25 mm
Dimension H23,5 mm
Dimension L25,5 mm
Dimension L153 mm
Dimension t3 mm
Distance to the wallno
Fastening typeScrew hole
For diameter25
Halogen-freeyes
Height23,5 mm
Hole size6,5 x 10 mm
Length53 mm
MaterialSteel
Material thickness2 mm
Nominal diameter25 mm
Number of cables/pipes1
Plastic-coveredno
SizeM25
Suitable in fire protection areano
SurfaceHot-dip galvanised
UV-resistantyes
Version forSingle-lobe
Width20 mm
