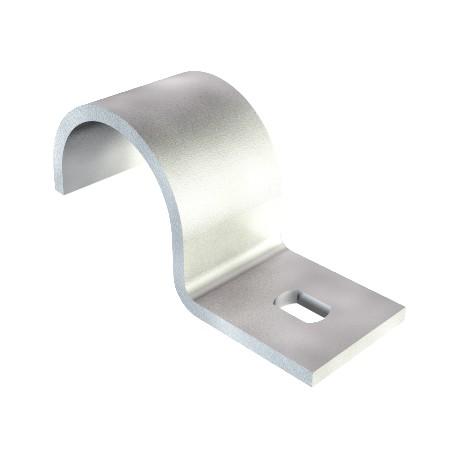

822 22.5 FT 1014161 OBO BETTERMANN Attaching clip single lobe, 23mm, Hot-dip galvanised, DIN EN ISO 1461, St..
822 22.5 FT
1014161
OBO BETTERMANN
50 Pcs.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann 822 22.5 FT attaching clip single lobe fastens mid-sized conduits and utility pipes securely to walls, machinery frames, and overhead cable trays. These durable support elements maintain organized and structurally sound runs throughout complex industrial electrical layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0459 kg CO2e / 1 Piece
- Dimension: 23mm
- Dimension A: 11 mm
- Dimension b: 20 mm
- Dimension D: 22,5 mm
- Dimension H: 21 mm
- Dimension L: 23,5 mm
- Dimension L1: 49 mm
- Dimension t: 2 mm
- Distance to the wall: no
- Fastening type: Screw hole
- For diameter: 22,5
- Halogen-free: yes
- Height: 21 mm
- Hole size: 6,5 x 10 mm
- Length: 49 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0459 kg CO2e / 1 Piece |
|---|---|
| Dimension | 23mm |
| Dimension A | 11 mm |
| Dimension b | 20 mm |
| Dimension D | 22,5 mm |
| Dimension H | 21 mm |
| Dimension L | 23,5 mm |
| Dimension L1 | 49 mm |
| Dimension t | 2 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 22,5 |
| Halogen-free | yes |
| Height | 21 mm |
| Hole size | 6,5 x 10 mm |
|---|---|
| Length | 49 mm |
| Material | Steel |
| Material thickness | 2 mm |
| Nominal diameter | 22,5 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Size | PG16 |
| Suitable in fire protection area | no |
| Surface | Hot-dip galvanised |
| UV-resistant | yes |
| Version for | Single-lobe |
| Width | 20 mm |
