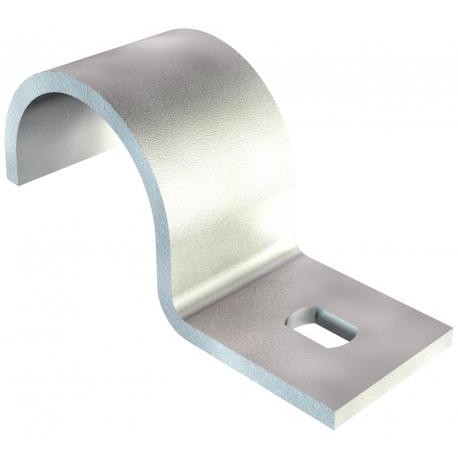

OBO BETTERMANN 822 18 FT 822 18 FT 1014110 OBO BETTERMANN Attaching clip single lobe, 19mm, Hot-dip galvanised, DIN EN ISO 1461, Stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

822 18 FT 1014110 OBO BETTERMANN Attaching clip single lobe, 19mm, Hot-dip galvanised, DIN EN ISO 1461, Stee..

822 18 FT

1014110

OBO BETTERMANN

100 Pcs.

Attaching clip single lobe, 19mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Fastening clip 822, heavy duty, FT. Fastening clip, single-lobe, 19 mm

Cables > Pipe saddle clamp
Pizza metal fixation

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Single lobe attaching clips are mechanical fasteners applied in industrial setups to secure conduits and pipes to flat surfaces with a single fixing point. This Obo Bettermann 822 18 FT unit offers robust corrosion resistance for external and heavy-duty routing applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0415 kg CO2e / 1 Piece
  • Dimension: 19mm
  • Dimension A: 10 mm
  • Dimension b: 20 mm
  • Dimension D: 18,6 mm
  • Dimension H: 17 mm
  • Dimension L: 23,5 mm
  • Dimension L1: 45 mm
  • Dimension t: 2 mm
  • Distance to the wall: no
  • Fastening type: Screw hole
  • For diameter: 18,6
  • Halogen-free: yes
  • Height: 17 mm
  • Hole size: 6,5 x 10 mm
  • Length: 45 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0415 kg CO2e / 1 Piece
Dimension19mm
Dimension A10 mm
Dimension b20 mm
Dimension D18,6 mm
Dimension H17 mm
Dimension L23,5 mm
Dimension L145 mm
Dimension t2 mm
Distance to the wallno
Fastening typeScrew hole
For diameter18,6
Halogen-freeyes
Height17 mm
Hole size6,5 x 10 mm
Length45 mm
MaterialSteel
Material thickness2 mm
Nominal diameter18,6 mm
Number of cables/pipes1
Plastic-coveredno
SizePG11
Suitable in fire protection areano
SurfaceHot-dip galvanised
UV-resistantyes
Version forSingle-lobe
Width20 mm
