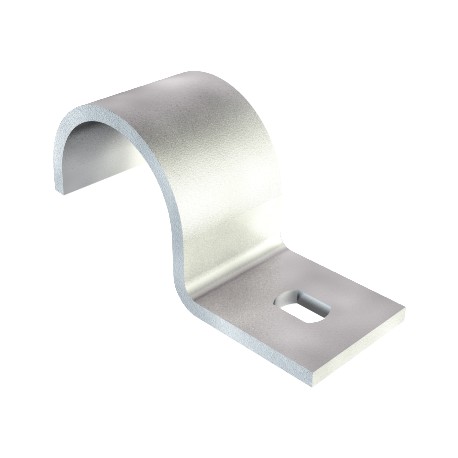

822 16 FT 1014099 OBO BETTERMANN Attaching clip single lobe, 16mm, Hot-dip galvanised, DIN EN ISO 1461, Stee..
822 16 FT
1014099
OBO BETTERMANN
100 Pcs.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Single lobe attaching clips provide robust support for individual conduit runs and industrial piping systems against walls and framing elements. This Obo Bettermann 822 16 FT unit utilizes durable hot-dip galvanising to withstand harsh conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0374 kg CO2e / 1 Piece
- Dimension: 16mm
- Dimension A: 10 mm
- Dimension b: 20 mm
- Dimension D: 15,2 mm
- Dimension H: 14 mm
- Dimension L: 23,5 mm
- Dimension L1: 42 mm
- Dimension t: 2 mm
- Distance to the wall: no
- Fastening type: Screw hole
- For diameter: 15,2
- Halogen-free: yes
- Height: 14 mm
- Hole size: 6,5 x 10 mm
- Length: 42 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0374 kg CO2e / 1 Piece |
|---|---|
| Dimension | 16mm |
| Dimension A | 10 mm |
| Dimension b | 20 mm |
| Dimension D | 15,2 mm |
| Dimension H | 14 mm |
| Dimension L | 23,5 mm |
| Dimension L1 | 42 mm |
| Dimension t | 2 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 15,2 |
| Halogen-free | yes |
| Height | 14 mm |
| Hole size | 6,5 x 10 mm |
|---|---|
| Length | 42 mm |
| Material | Steel |
| Material thickness | 2 mm |
| Nominal diameter | 15,2 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Size | M16 |
| Suitable in fire protection area | no |
| Surface | Hot-dip galvanised |
| UV-resistant | yes |
| Version for | Single-lobe |
| Width | 20 mm |
