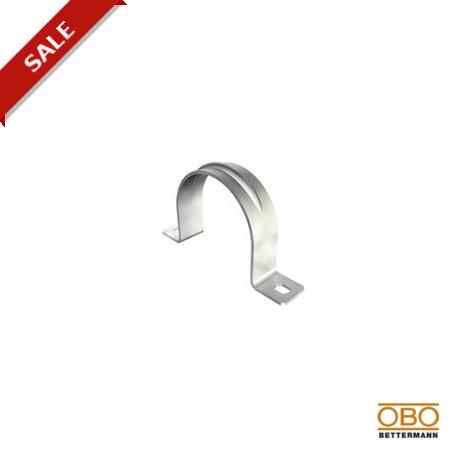

OBO BETTERMANN 605 50 ALU 605 50 ALU 1017980 OBO BETTERMANN Attaching clip two lobe, 50mm, Aluminium, Alu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

605 50 ALU 1017980 OBO BETTERMANN Attaching clip two lobe, 50mm, Aluminium, Alu

605 50 ALU

1017980

OBO BETTERMANN

25 Pcs.

Attaching clip two lobe, 50mm, Aluminium, Alu Fastening clip 605, medium duty, aluminium. Fastening clip, double-lobe, 50 mm

Cables > Pipe saddle clamp
Pizza metal fixation

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann 605 50 ALU attaching clip two lobe secures large-diameter conduits and heavy utility pipes to walls and structural supports in industrial facilities. Aluminum clips provide a lightweight yet rigid mounting solution for extensive electrical and mechanical line installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Clamping range D, max.: 50 mm
  • Clamping range D, min.: 50 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1362 kg CO2e / 1 Piece
  • Dimension: 50mm
  • Dimension A: 110 mm
  • Dimension B: 86 mm
  • Dimension b: 25 mm
  • Dimension D: 50 mm
  • Dimension d: 5,5 mm
  • Dimension e: 7 mm
  • Dimension H: 46 mm
  • Dimension t: 1,5 mm
  • Distance to the wall: no
  • Fastening type: Screw hole
  • For diameter: 50
  • Halogen-free: yes

More info

▲
Clamping range D, max.50 mm
Clamping range D, min.50 mm
CO2 Footprint (GWP) Cradle-to-Gate0,1362 kg CO2e / 1 Piece
Dimension50mm
Dimension A110 mm
Dimension B86 mm
Dimension b25 mm
Dimension D50 mm
Dimension d5,5 mm
Dimension e7 mm
Dimension H46 mm
Dimension t1,5 mm
Distance to the wallno
Fastening typeScrew hole
For diameter50
Halogen-freeyes
Height46 mm
Hole size5,5 x 7 mm
Length110 mm
MaterialAluminium
Material thickness1,5 mm
Nominal diameter50 mm
Number of cables/pipes1
Plastic-coveredno
Suitable in fire protection areano
UV-resistantyes
Version forTwo-lobe
Width25 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
