OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Pizza metal fixation
>
1018396
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

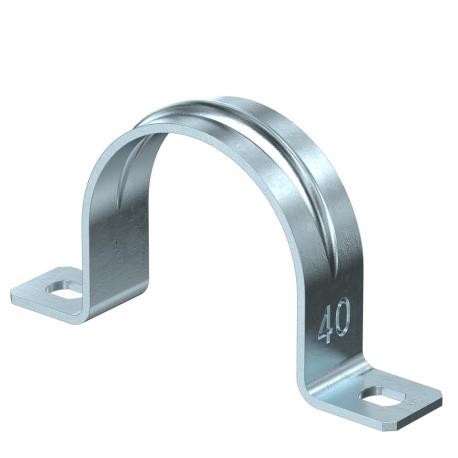

605 40 G 1018396 OBO BETTERMANN Attaching clip two lobe, 40mm, Electrogalvanised, DIN 50961, Steel, St
605 40 G
1018396
OBO BETTERMANN
50 Pcs.
Attaching clip two lobe, 40mm, Electrogalvanised, DIN 50961, Steel, St
Fastening clip 605, medium duty, G. Two lobe fastening clips for cables and pipes.* Sizes 7 to 12 not suitable for bolt-firing tool.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,054 kg CO2e / 1 Piece |
|---|---|
| Dimension | 40mm |
| Dimension A | 75 mm |
| Dimension b | 14 mm |
| Dimension B | 61 mm |
| Dimension D | 40 mm |
| Dimension d | 5,5 mm |
| Dimension e | 7 mm |
| Dimension H | 37 mm |
| Dimension t | 1,5 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 40 |
| Halogen-free | yes |
| Height | 37 mm |
|---|---|
| Hole size | 5,5 x 7 mm |
| Length | 75 mm |
| Material | Steel |
| Material thickness | 1,5 mm |
| Nominal diameter | 40 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Two-lobe |
| Width | 14 mm |
