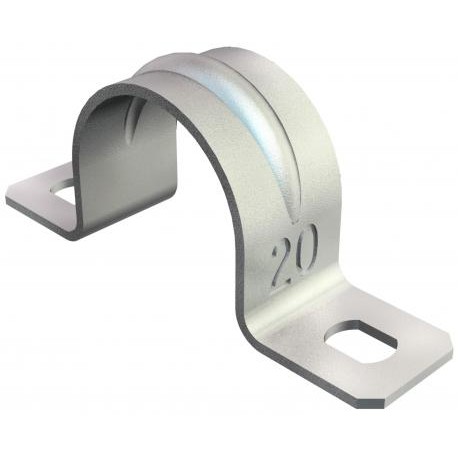

OBO BETTERMANN 605 35 G 605 35 G 1018353 OBO BETTERMANN Attaching clip two lobe, 35mm, Electrogalvanised, DIN 50961, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

605 35 G 1018353 OBO BETTERMANN Attaching clip two lobe, 35mm, Electrogalvanised, DIN 50961, Steel, St

605 35 G

1018353

OBO BETTERMANN

100 Pcs.

Attaching clip two lobe, 35mm, Electrogalvanised, DIN 50961, Steel, St Fastening clip 605, medium duty, G. Two lobe fastening clips for cables and pipes.* Sizes 7 to 12 not suitable for bolt-firing tool.

Cables > Pipe saddle clamp
Pizza metal fixation

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Attaching clip two lobe hardware secures large electrical conduits and process pipes tightly against structural supports to prevent unwanted shifting. The Obo Bettermann 605 35 G fastener ensures robust mechanical alignment in complex installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0369 kg CO2e / 1 Piece
  • Dimension: 35mm
  • Dimension A: 70 mm
  • Dimension b: 14 mm
  • Dimension B: 56 mm
  • Dimension D: 35 mm
  • Dimension d: 5,5 mm
  • Dimension e: 7 mm
  • Dimension H: 32 mm
  • Dimension t: 1,5 mm
  • Distance to the wall: no
  • Fastening type: Screw hole
  • For diameter: 35
  • Halogen-free: yes
  • Height: 32 mm
  • Hole size: 5,5 x 7 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0369 kg CO2e / 1 Piece
Dimension35mm
Dimension A70 mm
Dimension b14 mm
Dimension B56 mm
Dimension D35 mm
Dimension d5,5 mm
Dimension e7 mm
Dimension H32 mm
Dimension t1,5 mm
Distance to the wallno
Fastening typeScrew hole
For diameter35
Halogen-freeyes
Height32 mm
Hole size5,5 x 7 mm
Length70 mm
MaterialSteel
Material thickness1,5 mm
Nominal diameter35 mm
Number of cables/pipes1
Plastic-coveredno
Suitable in fire protection areano
SurfaceElectrogalvanized
UV-resistantyes
Version forTwo-lobe
Width14 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
