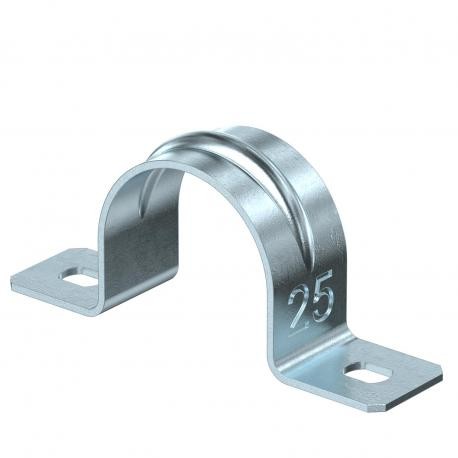

OBO BETTERMANN 605 25 G 605 25 G 1018256 OBO BETTERMANN Attaching clip two lobe, 25mm, Electrogalvanised, DIN 50961, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

605 25 G 1018256 OBO BETTERMANN Attaching clip two lobe, 25mm, Electrogalvanised, DIN 50961, Steel, St

605 25 G

1018256

OBO BETTERMANN

100 Pcs.

Attaching clip two lobe, 25mm, Electrogalvanised, DIN 50961, Steel, St Fastening clip 605, medium duty, G. Two lobe fastening clips for cables and pipes.* Sizes 7 to 12 not suitable for bolt-firing tool.

Cables > Pipe saddle clamp
Pizza metal fixation

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann 605 25 G attaching clip two lobe offers robust mounting capability for electrical conduit and industrial piping routed across structural building elements. Hardware of this classification ensures rigid mechanical support and keeps runs properly aligned within complex automation facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0256 kg CO2e / 1 Piece
  • Dimension: 25mm
  • Dimension A: 58 mm
  • Dimension B: 44 mm
  • Dimension b: 14 mm
  • Dimension D: 25 mm
  • Dimension d: 4,5 mm
  • Dimension e: 6 mm
  • Dimension H: 23 mm
  • Dimension t: 1 mm
  • Distance to the wall: no
  • Fastening type: Screw hole
  • For diameter: 25
  • Halogen-free: yes
  • Height: 23 mm
  • Hole size: 4,5 x 6 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0256 kg CO2e / 1 Piece
Dimension25mm
Dimension A58 mm
Dimension b14 mm
Dimension B44 mm
Dimension D25 mm
Dimension d4,5 mm
Dimension e6 mm
Dimension H23 mm
Dimension t1 mm
Distance to the wallno
Fastening typeScrew hole
For diameter25
Halogen-freeyes
Height23 mm
Hole size4,5 x 6 mm
Length58 mm
MaterialSteel
Material thickness1 mm
Nominal diameter25 mm
Number of cables/pipes1
Plastic-coveredno
Suitable in fire protection areano
SurfaceElectrogalvanized
UV-resistantyes
Version forTwo-lobe
Width14 mm
