OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Pizza metal fixation
>
1018221
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

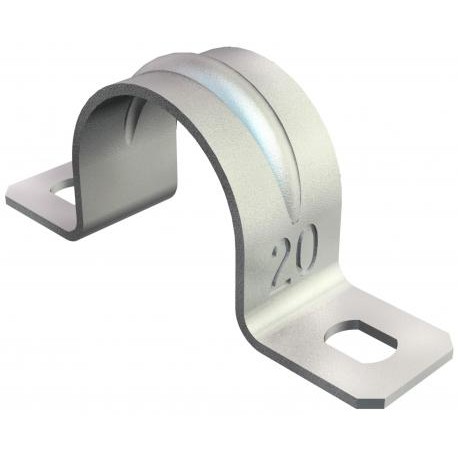

605 23 G 1018221 OBO BETTERMANN Attaching clip two lobe, 23mm, Electrogalvanised, DIN 50961, Steel, St
605 23 G
1018221
OBO BETTERMANN
100 Pcs.
Attaching clip two lobe, 23mm, Electrogalvanised, DIN 50961, Steel, St
Fastening clip 605, medium duty, G. Two lobe fastening clips for cables and pipes.* Sizes 7 to 12 not suitable for bolt-firing tool.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,02 kg CO2e / 1 Piece |
|---|---|
| Dimension | 23mm |
| Dimension A | 52 mm |
| Dimension b | 12 mm |
| Dimension B | 40 mm |
| Dimension d | 4,5 mm |
| Dimension D | 23 mm |
| Dimension e | 6 mm |
| Dimension H | 21 mm |
| Dimension t | 1 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 23 |
| Halogen-free | yes |
| Height | 21 mm |
|---|---|
| Hole size | 4,5 x 6 mm |
| Length | 52 mm |
| Material | Steel |
| Material thickness | 1 mm |
| Nominal diameter | 23 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Two-lobe |
| Width | 12 mm |
