OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Pizza metal fixation
>
1018205
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

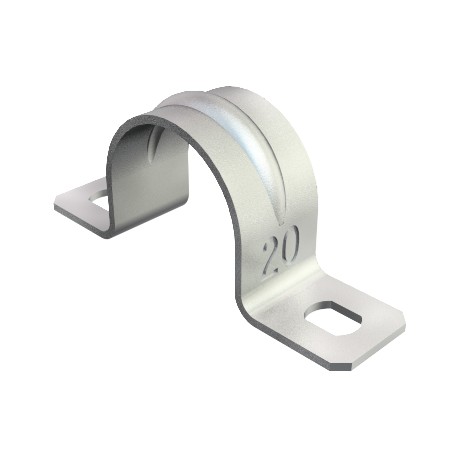

605 20 G 1018205 OBO BETTERMANN Attaching clip two lobe, 20mm, Electrogalvanised, DIN 50961, Steel, St
605 20 G
1018205
OBO BETTERMANN
100 Pcs.
Attaching clip two lobe, 20mm, Electrogalvanised, DIN 50961, Steel, St
Fixing clip 605 20 G,2 feet 20mm Steel, St,electrozinc, EN ISO 19598 / EN ISO 4042
Fastening clip 605, medium duty, G. Two lobe fastening clips for cables and pipes.* Sizes 7 to 12 not suitable for bolt-firing tool.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0185 kg CO2e / 1 Piece |
|---|---|
| Dimension | 20mm |
| Dimension A | 49 mm |
| Dimension b | 12 mm |
| Dimension B | 37 mm |
| Dimension d | 4,5 mm |
| Dimension D | 20 mm |
| Dimension e | 6 mm |
| Dimension H | 18,5 mm |
| Dimension t | 1 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 20 |
| Halogen-free | yes |
| Height | 18,5 mm |
|---|---|
| Hole size | 4,5 x 6 mm |
| Length | 49 mm |
| Material | Steel |
| Material thickness | 1 mm |
| Nominal diameter | 20 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Two-lobe |
| Width | 12 mm |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 20 mm |
| Number of cables/conduits (EF004421) | 1 |
| With distance to the wall (EF007571) | No |
| Model (EF000010) | Double clamp |
| Type of fastening (EF002442) | Screw hole |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Halogen free (EF000025) | Yes |
| Suitable in fire resistance areas (EF007821) | No |
| Plastic sheathed (EF006600) | No |
