605 11 G 1018116 OBO BETTERMANN Attaching clip two lobe, 11mm, Electrogalvanised, DIN 50961, Steel, St
605 11 G
1018116
OBO BETTERMANN
100 Pcs.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

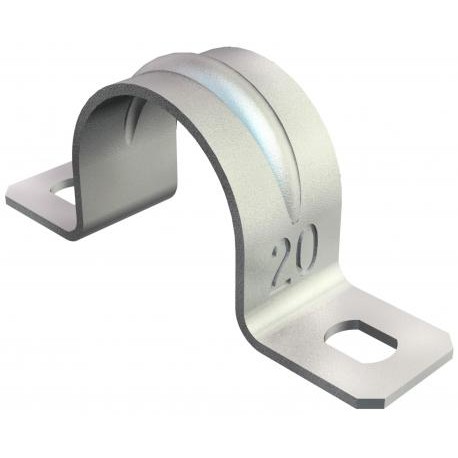

Attaching clip two lobe, identified as Obo Bettermann 605 11 G, provides compact, balanced anchoring for small-diameter conduits and cables. Dual-lobe installation hardware secures delicate wiring systems against unwanted vibration and mechanical displacement.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0096 kg CO2e / 1 Piece
- Dimension: 11mm
- Dimension A: 38 mm
- Dimension B: 26 mm
- Dimension b: 12 mm
- Dimension d: 4,5 mm
- Dimension D: 11 mm
- Dimension e: 6 mm
- Dimension H: 10 mm
- Dimension t: 1 mm
- Distance to the wall: no
- Fastening type: Screw hole
- For diameter: 11
- Halogen-free: yes
- Height: 10 mm
- Hole size: 4,5 x 6 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0096 kg CO2e / 1 Piece |
|---|---|
| Dimension | 11mm |
| Dimension A | 38 mm |
| Dimension B | 26 mm |
| Dimension b | 12 mm |
| Dimension d | 4,5 mm |
| Dimension D | 11 mm |
| Dimension e | 6 mm |
| Dimension H | 10 mm |
| Dimension t | 1 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 11 |
| Halogen-free | yes |
| Height | 10 mm |
|---|---|
| Hole size | 4,5 x 6 mm |
| Length | 38 mm |
| Material | Steel |
| Material thickness | 1 mm |
| Nominal diameter | 11 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Two-lobe |
| Width | 12 mm |
