OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Pizza metal fixation
>
1003097
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

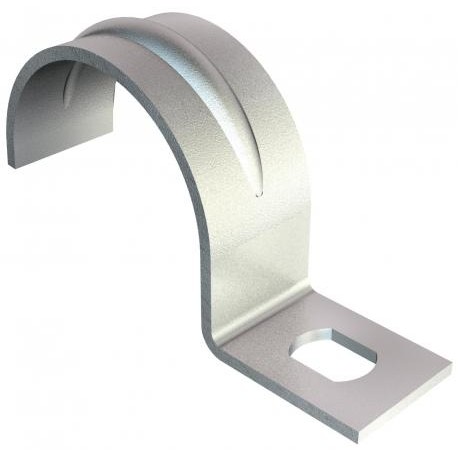

604 9 G 1003097 OBO BETTERMANN Attaching clip single lobe, 9mm, Electrogalvanised, DIN 50961, Steel, St
604 9 G
1003097
OBO BETTERMANN
100 Pcs.
Attaching clip single lobe, 9mm, Electrogalvanised, DIN 50961, Steel, St
Fastening clip 604, light duty. Single-lobe fastening clip for cables and pipes.* Sizes 3 and 4 are not suitable for nail device* Sizes 3 to 21 are not suitable for bolt-firing tool
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0045 kg CO2e / 1 Piece |
|---|---|
| Dimension | 9mm |
| Dimension A | 5,75 mm |
| Dimension b | 8 mm |
| Dimension D | 9 mm |
| Dimension d | 4,5 mm |
| Dimension e | 6 mm |
| Dimension H | 8 mm |
| Dimension L | 21,5 mm |
| Dimension t | 0,7 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 9 |
| Halogen-free | yes |
| Height | 8 mm |
|---|---|
| Hole size | 4,5 x 6 mm |
| Length | 21,5 mm |
| Material | Steel |
| Material thickness | 0,7 mm |
| Nominal diameter | 9 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Single-lobe |
| Width | 8 mm |
