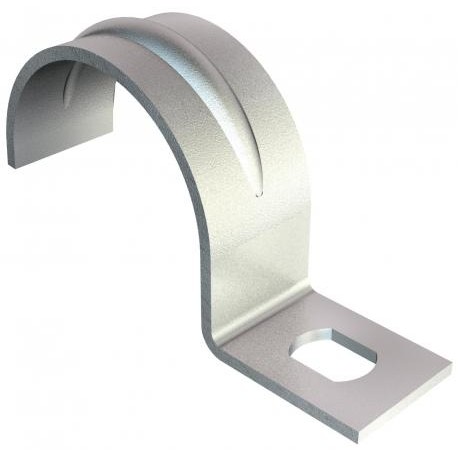

604 8 G 1003089 OBO BETTERMANN Attaching clip single lobe, 8mm, Electrogalvanised, DIN 50961, Steel, St
604 8 G
1003089
OBO BETTERMANN
100 Pcs.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann attaching clip single lobe fastens small-diameter cables and thin conduits directly to structural panels.
Compact fastening clips maintain orderly line layouts in control cabinets and general electrical distribution assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0043 kg CO2e / 1 Piece
- Dimension: 8mm
- Dimension A: 5,5 mm
- Dimension b: 8 mm
- Dimension d: 4,5 mm
- Dimension D: 8 mm
- Dimension e: 6 mm
- Dimension H: 7 mm
- Dimension L: 21 mm
- Dimension t: 0,7 mm
- Distance to the wall: no
- Fastening type: Screw hole
- For diameter: 8
- Halogen-free: yes
- Height: 7 mm
- Hole size: 4,5 x 6 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0043 kg CO2e / 1 Piece |
|---|---|
| Dimension | 8mm |
| Dimension A | 5,5 mm |
| Dimension b | 8 mm |
| Dimension d | 4,5 mm |
| Dimension D | 8 mm |
| Dimension e | 6 mm |
| Dimension H | 7 mm |
| Dimension L | 21 mm |
| Dimension t | 0,7 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 8 |
| Halogen-free | yes |
| Height | 7 mm |
|---|---|
| Hole size | 4,5 x 6 mm |
| Length | 21 mm |
| Material | Steel |
| Material thickness | 0,7 mm |
| Nominal diameter | 8 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Single-lobe |
| Width | 8 mm |
