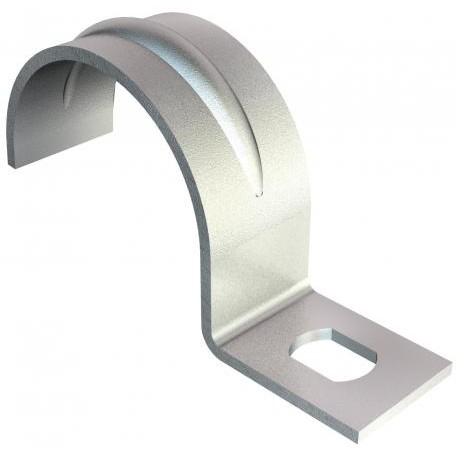

604 12 G 1003127 OBO BETTERMANN Attaching clip single lobe, 12mm, Electrogalvanised, DIN 50961, Steel, St
604 12 G
1003127
OBO BETTERMANN
100 Pcs.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann 604 12 G attaching clip single lobe provides robust fixation for conduits and pipes running across industrial walls, panels, and machinery. These brackets facilitate clean installation arrays by anchoring individual runs firmly in place. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0049 kg CO2e / 1 Piece
- Dimension: 12mm
- Dimension A: 6,5 mm
- Dimension b: 10 mm
- Dimension d: 4,5 mm
- Dimension D: 12 mm
- Dimension e: 6 mm
- Dimension H: 11 mm
- Dimension L: 27 mm
- Dimension t: 0,7 mm
- Distance to the wall: no
- Fastening type: Screw hole
- For diameter: 12
- Halogen-free: yes
- Height: 11 mm
- Hole size: 4,5 x 6 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0049 kg CO2e / 1 Piece |
|---|---|
| Dimension | 12mm |
| Dimension A | 6,5 mm |
| Dimension b | 10 mm |
| Dimension d | 4,5 mm |
| Dimension D | 12 mm |
| Dimension e | 6 mm |
| Dimension H | 11 mm |
| Dimension L | 27 mm |
| Dimension t | 0,7 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 12 |
| Halogen-free | yes |
| Height | 11 mm |
|---|---|
| Hole size | 4,5 x 6 mm |
| Length | 27 mm |
| Material | Steel |
| Material thickness | 0,7 mm |
| Nominal diameter | 12 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Single-lobe |
| Width | 10 mm |
