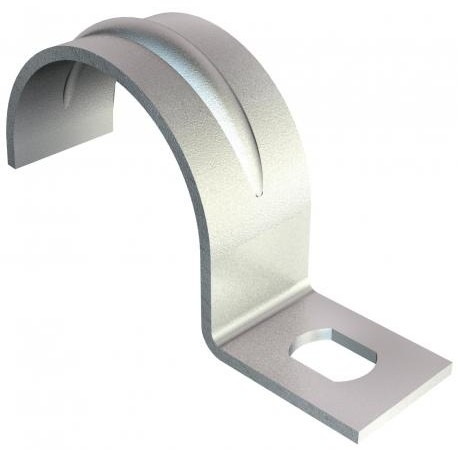

604 11 G 1003119 OBO BETTERMANN Attaching clip single lobe, 11mm, Electrogalvanised, DIN 50961, Steel, St
604 11 G
1003119
OBO BETTERMANN
100 Pcs.
Cables > Pipe saddle clamp
Pizza metal fixation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann 604 11 G attaching clip single lobe serves as a mechanical fastener used to secure electrical protection conduits and cables to walls or machine frames. Single-lobe pipe brackets maintain clear alignment and dependable support for light-duty industrial wiring paths. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0056 kg CO2e / 1 Piece
- Dimension: 11mm
- Dimension A: 5,5 mm
- Dimension b: 10 mm
- Dimension D: 11 mm
- Dimension d: 4,5 mm
- Dimension e: 6 mm
- Dimension H: 10 mm
- Dimension L: 24 mm
- Dimension t: 1 mm
- Distance to the wall: no
- Fastening type: Screw hole
- For diameter: 11
- Halogen-free: yes
- Height: 10 mm
- Hole size: 4,5 x 6 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0056 kg CO2e / 1 Piece |
|---|---|
| Dimension | 11mm |
| Dimension A | 5,5 mm |
| Dimension b | 10 mm |
| Dimension D | 11 mm |
| Dimension d | 4,5 mm |
| Dimension e | 6 mm |
| Dimension H | 10 mm |
| Dimension L | 24 mm |
| Dimension t | 1 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 11 |
| Halogen-free | yes |
| Height | 10 mm |
|---|---|
| Hole size | 4,5 x 6 mm |
| Length | 24 mm |
| Material | Steel |
| Material thickness | 1 mm |
| Nominal diameter | 11 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Single-lobe |
| Width | 10 mm |
