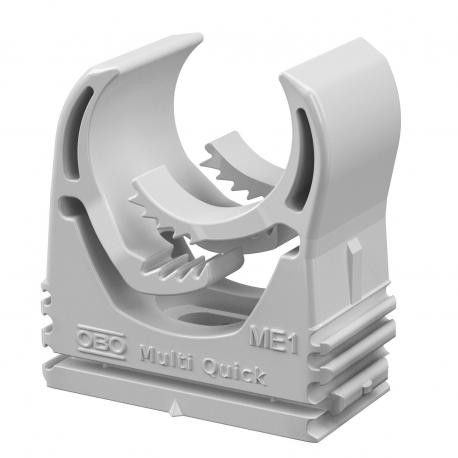

OBO BETTERMANN M-Quick M20 LGR M-Quick M20 LGR 2153718 OBO BETTERMANN Multi-Quick clip , 16-20mm, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M-Quick M20 LGR 2153718 OBO BETTERMANN Multi-Quick clip , 16-20mm, Light grey, 7035, Polyamide, PA

M-Quick M20 LGR

2153718

OBO BETTERMANN

100 Pcs.

Multi-Quick clip , 16-20mm, Light grey, 7035, Polyamide, PA Multi-Quick clip, metric. Flush-mounted clip to accept metric pipes and Quick-Pipe® electrical installation pipes. Flexible clamping range of several millimetres. Universal fastening options on walls and ceilings, both indoors and outdoors. Toolless pipe mounting. Can also be arranged with OBO Quick or proQuick clip.

Cables > Tube clamp
Multiquick Clamps

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann M-Quick M20 LGR Multi-Quick clip , 16-20mm, Light grey, 7035, Polyamide, PA functions as an adaptable mounting clip engineered to securely anchor conduits and cables across varying dimensions. Maintenance technicians and electrical fitters utilize these polyamide clips to establish reliable cable routing paths in industrial machinery and buildings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Clamping range D, max.: 20 mm
  • Clamping range D, min.: 16 mm
  • Closed: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0256 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: 16-20mm
  • Dimension A: 27,5 mm
  • Dimension B: 15,5 mm
  • Dimension E: 8 mm
  • Dimension F: 4,1 mm
  • Dimension H: 32 mm
  • Dimension h: 7 mm
  • Expandable: yes
  • Fastening type: Screw hole
  • Flame-resistant: acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
  • Halogen-free: yes

More info

▲
Clamping range D, max.20 mm
Clamping range D, min.16 mm
Closedno
CO2 Footprint (GWP) Cradle-to-Gate0,0256 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Dimension16-20mm
Dimension A27,5 mm
Dimension B15,5 mm
Dimension E8 mm
Dimension F4,1 mm
Dimension H32 mm
Dimension h7 mm
Expandableyes
Fastening typeScrew hole
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Halogen-freeyes
MaterialPolyamide
Number of cables/pipes1
Pull-out value40 N
UV-resistantno
With inlayno

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
