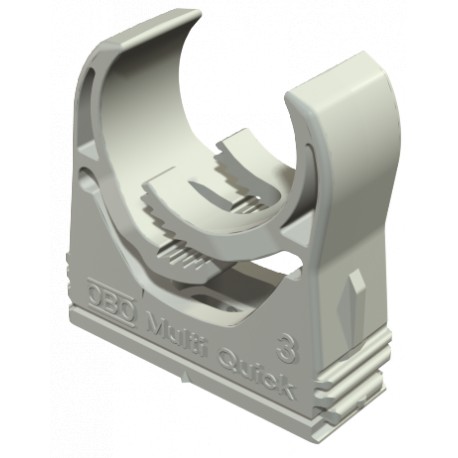

M-Quick 31-37LGR 2153157 OBO BETTERMANN Multi-Quick clip , 31-37mm, Light grey, 7035, Polyamide, PA
M-Quick 31-37LGR
2153157
OBO BETTERMANN
25 Pcs.
Cables > Tube clamp
Multiquick Clamps
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann M-Quick 31-37LGR Multi-Quick clip , 31-37mm, Light grey, 7035, Polyamide, PA serves as a versatile multi-range fastening bracket designed to anchor variable-diameter conduits and cables. Installers rely on these polyamide mounting clips in industrial automation and building infrastructure to maintain clean and flexible cable management layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Clamping range D, max.: 37 mm
- Clamping range D, min.: 31 mm
- Closed: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0814 kg CO2e / 1 Piece
- Colour: Light grey
- RAL 7035:
- Dimension: 31-37mm
- Dimension A: 55 mm
- Dimension B: 15,5 mm
- Dimension E: 8 mm
- Dimension F: 4,1 mm
- Dimension h: 7 mm
- Dimension H: 58 mm
- Expandable: yes
- Fastening type: Screw hole
- Flame-resistant: acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
- Halogen-free: yes
More info
▲| Clamping range D, max. | 37 mm |
|---|---|
| Clamping range D, min. | 31 mm |
| Closed | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0814 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | 31-37mm |
| Dimension A | 55 mm |
| Dimension B | 15,5 mm |
| Dimension E | 8 mm |
| Dimension F | 4,1 mm |
| Dimension h | 7 mm |
| Dimension H | 58 mm |
|---|---|
| Expandable | yes |
| Fastening type | Screw hole |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Halogen-free | yes |
| Material | Polyamide |
| Number of cables/pipes | 1 |
| Pull-out value | 65 N |
| UV-resistant | no |
| With inlay | no |
