OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Multiquick Clamps
>
2153106
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

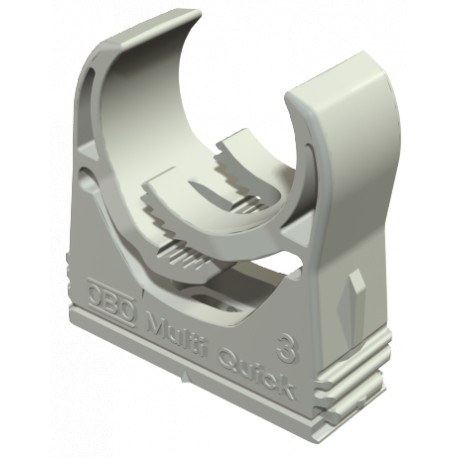

M-Quick 15-19LGR 2153106 OBO BETTERMANN Multi-Quick clip , 15-19mm, Light grey, 7035, Polyamide, PA
M-Quick 15-19LGR
2153106
OBO BETTERMANN
100 Pcs.
Multi-Quick clip , 15-19mm, Light grey, 7035, Polyamide, PA
Multi-Quick clip. Flush-mounted clip to accept metric and PG pipes and Quick-Pipe® electrical installation pipes. Flexible clamping range of several millimetres. Universal fastening options on walls and ceilings and usable in a profile rail, both in indoor and protected outdoor areas. Toolless pipe mounting. Can also be arranged with OBO Quick clip or proQuick clip.
Cables > Tube clamp
Multiquick Clamps
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Clamping range D, max. | 19 mm |
|---|---|
| Clamping range D, min. | 15 mm |
| Closed | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0238 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | 15-19mm |
| Dimension A | 27,5 mm |
| Dimension B | 15,5 mm |
| Dimension E | 8 mm |
| Dimension F | 4,1 mm |
| Dimension h | 7 mm |
| Dimension H | 32 mm |
|---|---|
| Expandable | yes |
| Fastening type | Screw hole |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Halogen-free | yes |
| Material | Polyamide |
| Number of cables/pipes | 1 |
| Pull-out value | 40 N |
| UV-resistant | no |
| With inlay | no |
