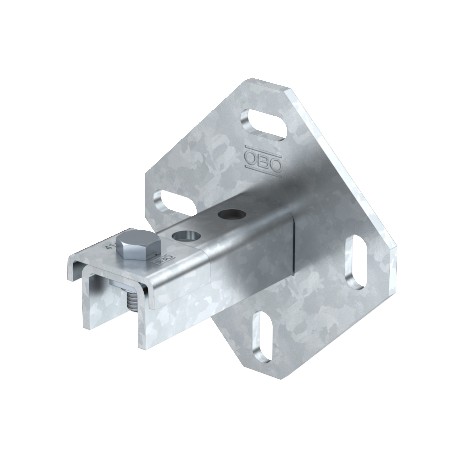

OBO BETTERMANN WBDHE 41 FT WBDHE 41 FT 1123191 OBO BETTERMANN Wall holder combination MS 41, 134x110x102, Hot-dip galvanised, DIN EN IS.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WBDHE 41 FT 1123191 OBO BETTERMANN Wall holder combination MS 41, 134x110x102, Hot-dip galvanised, DIN EN IS..

WBDHE 41 FT

1123191

OBO BETTERMANN

10 Pcs.

Wall holder combination MS 41, 134x110x102, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall, floor and ceiling bracket with 3 holes FT. The wall, floor and ceiling bracket can ideally be used as a panel for wall, floor and ceiling mounting.Also suitable for stand and frame construction in conjunction with the mounting rails MS4141.

Automation > Fastening element for mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann wall holders (part number WBDHE 41 FT) are structural mounting brackets utilized in industrial infrastructure projects to attach mounting channels and framing systems directly to concrete walls or structural partitions. They offer rigid support for electrical raceways and heavy cable management runs. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,0185 kg CO2e / 1 Piece
  • Dimension: 134x110x102
  • Height: 110 mm
  • Hole size: 25 x 11 mm
  • Length: 102 mm
  • Material: Steel
  • Material thickness: 5 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 2,97 cm²
  • Static value ly: 6,05 cm⁴
  • Static value lz: 9,01 cm⁴
  • Static value Wy: 2,91 cm³
  • Static value Wz: 4,4 cm³
  • Surface: Hot-dip galvanised
  • Version for: Perforated

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,0185 kg CO2e / 1 Piece
Dimension134x110x102
Height110 mm
Hole size25 x 11 mm
Length102 mm
MaterialSteel
Material thickness5 mm
Profile shapeC profile
Slot width22 mm
Static value A2,97 cm²
Static value ly6,05 cm⁴
Static value lz9,01 cm⁴
Static value Wy2,91 cm³
Static value Wz4,4 cm³
SurfaceHot-dip galvanised
Version forPerforated
Width134 mm
