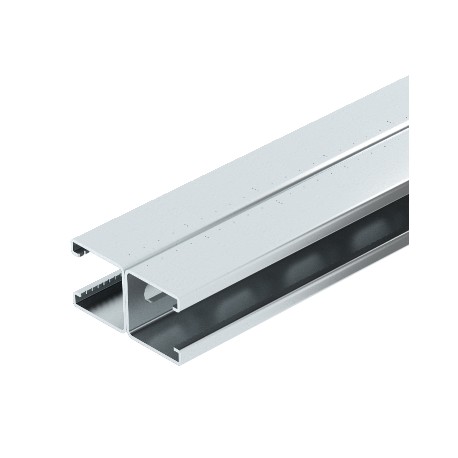

OBO BETTERMANN MS4182P6000FS MS4182P6000FS 1122678 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x82x41, Strip-galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS4182P6000FS 1122678 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x82x41, Strip-galvanise..

MS4182P6000FS

1122678

OBO BETTERMANN

6 m.

Profile rails perforated, slot width 22 mm, 6000x82x41, Strip-galvanised, DIN EN 10147, Steel, St Profile MS4182P6000FS, perfor., groove width 22mm 6000x41x82 Steel, St, strip galvanized, DIN EN 10346

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Profile rails perforated, slot width 22 mm, 6000x82x41, Strip-galvanise.. by Obo Bettermann serves as a heavy-duty structural channel for routing cables and supporting electrical infrastructure in commercial plants. These metal support channels accommodate various clamp types and fasteners to organize complex wiring paths along walls or overhead gantries. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: MS4182P6000FS
  • Catalogue code: 1122678
  • Catalogue title: MS4182P6000FS 1122678 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x82x41, Strip-galvanise..
  • Product description: Static values: A = 4,8569 cm2 ly = 30,6909 cm⁴ lz = 15,1124 cm⁴ Wy = 2,51257 cm3 Wz = 2,68608 cm3
  • Manufacturer summary: Profile rails perforated, slot width 22 mm, 6000x82x41, Strip-galvanised, DIN EN 10147, Steel, St Profile MS4182P6000FS, perfor., groove width 22mm 6000x41x82 Steel, St, strip galvanized, DIN EN 10346

More info

▲
Static values:
A = 4,8569 cm2
ly = 30,6909 cm⁴
lz = 15,1124 cm⁴
Wy = 2,51257 cm3
Wz = 2,68608 cm3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
