View larger
Images are for illustrative purposes only. Please refer to data sheet for details

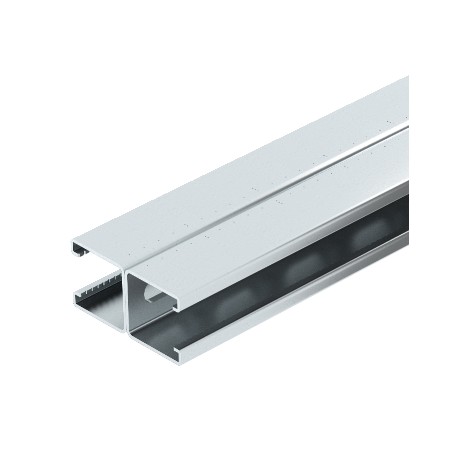

MS 41D L 3M 2 FS 1122676 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x82x41, Strip-galvan..
MS4182P3000FS
1122676
OBO BETTERMANN
3 m.
Profile rails perforated, slot width 22 mm, 3000x82x41, Strip-galvanised, DIN EN 10147, Steel, St
MS4182 mounting rail, slot 22 mm, double, FS, perforated. Heavy-duty profile/mounting rail with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (clinched).
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 9,7144 kg CO2e / 1 Meter |
| Dimension | 3000x41x82 |
| Dimension L | 3000 mm |
| Height | 82 mm |
| Hole size | 14x28 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 4,86 cm² |
| Static value ly | 30,69 cm⁴ |
| Static value lz | 15,11 cm⁴ |
| Static value Wy | 2,51 cm³ |
| Static value Wz | 2,69 cm³ |
| Surface | Strip galvanized |
| Type of perforation | Perforated bar |
| Version for | Double profile |
| Width | 41 mm |
| With toothing | yes |
