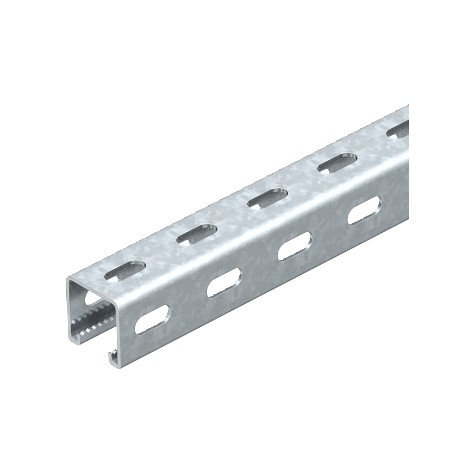

MS 41 LS6M 2 V2A 1123018 OBO BETTERMANN Profile rails side perforation, slot 22 mm, 6000x41x41, Stainless st..
MSL4141PP6000A2
1123018
OBO BETTERMANN
6 m.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Profile rails side perforation by Obo Bettermann, part number MSL4141PP6000A2, are long structural mounting channels featuring lateral slotting to simplify the installation of industrial cable support systems and junction assemblies. These channels offer high load-bearing capacity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 10,1806 kg CO2e / 1 Meter
- Dimension: 6000x41x41
- Dimension L: 6000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 6000 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,01 cm²
- Static value ly: 5,13 cm⁴
- Static value lz: 5,88 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 10,1806 kg CO2e / 1 Meter |
| Dimension | 6000x41x41 |
| Dimension L | 6000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,01 cm² |
| Static value ly | 5,13 cm⁴ |
| Static value lz | 5,88 cm⁴ |
| Static value Wy | 2,51 cm³ |
| Static value Wz | 2,69 cm³ |
| Surface | Bright, treated |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
