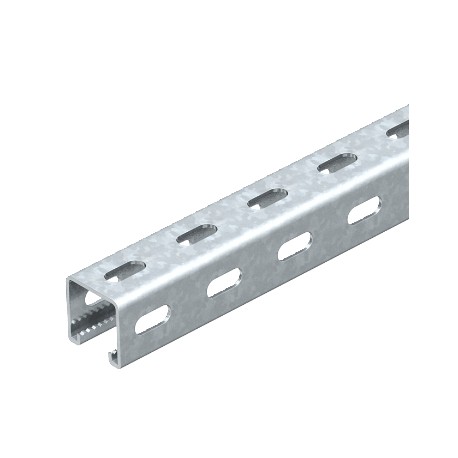

MS 41 LS3M 2 V2A 1123016 OBO BETTERMANN Profile rails side perforation, slot 22 mm, 3000x41x41, Stainless st..
MSL4141PP3000A2
1123016
OBO BETTERMANN
3 m.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Profile rails side perforation supplied by Obo Bettermann under part number MSL4141PP3000A2 serve as structural support channels designed for heavy-duty cable management and industrial mounting applications. The side perforations facilitate alternative fastening orientations for complex wiring layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 10,1792 kg CO2e / 1 Meter
- Dimension: 3000x41x41
- Dimension L: 3000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,01 cm²
- Static value ly: 5,13 cm⁴
- Static value lz: 5,88 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 10,1792 kg CO2e / 1 Meter |
| Dimension | 3000x41x41 |
| Dimension L | 3000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,01 cm² |
| Static value ly | 5,13 cm⁴ |
| Static value lz | 5,88 cm⁴ |
| Static value Wy | 2,51 cm³ |
| Static value Wz | 2,69 cm³ |
| Surface | Bright, treated |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
