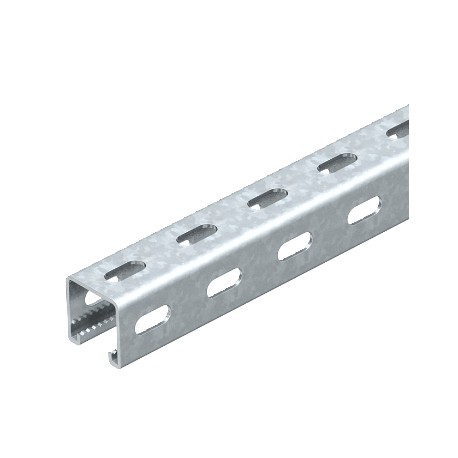

MS 41 LS1M 2 V2A 1123014 OBO BETTERMANN Profile rails side perforation, slot 22 mm, 1000x41x41, Stainless st..
MSL4141PP1000A2
1123014
OBO BETTERMANN
1 Pcs.
Profile rails side perforation, slot 22 mm, 1000x41x41, Stainless steel, grade 304, VA, 1.4301
MS4141 mounting rail, slot 22 mm, A2, side perforation. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann profile rails side perforation (part number MSL4141PP1000A2) deliver a corrosion-resistant stainless steel channel solution for precise cable routing and equipment mounting. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 10,1491 kg CO2e / 1 Meter
- Dimension: 1000x41x41
- Dimension L: 1000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 1000 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,01 cm²
- Static value ly: 5,13 cm⁴
- Static value lz: 5,88 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 10,1491 kg CO2e / 1 Meter |
| Dimension | 1000x41x41 |
| Dimension L | 1000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 1000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,01 cm² |
| Static value ly | 5,13 cm⁴ |
| Static value lz | 5,88 cm⁴ |
| Static value Wy | 2,51 cm³ |
| Static value Wz | 2,69 cm³ |
| Surface | Bright, treated |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
