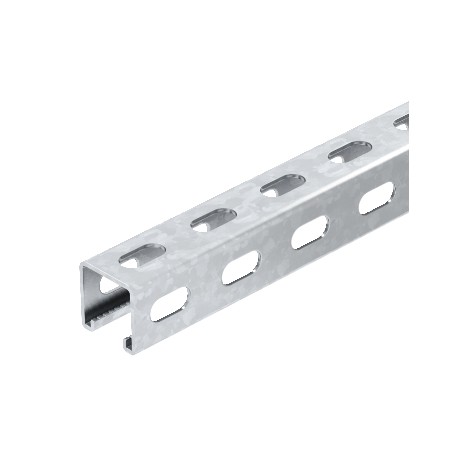

MS 41 LS 6M FT 1122487 OBO BETTERMANN Profile rail side perforation, slot 22 mm, 6000x41x41, Hot-dip galvani..
MS4141PP6000FT
1122487
OBO BETTERMANN
6 m.
Profile rail side perforation, slot 22 mm, 6000x41x41, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
MS4141 mounting rail, slot width 22 mm, FT, side perforation. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann MS4141PP6000FT profile rail side perforation members function as extended framing channels for heavy cable management infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 5,2799 kg CO2e / 1 Meter
- Dimension: 6000x41x41
- Dimension L: 6000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 11x25 mm
- Length: 6000 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2,5 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,42 cm²
- Static value ly: 6 cm⁴
- Static value lz: 6,97 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 5,2799 kg CO2e / 1 Meter |
| Dimension | 6000x41x41 |
| Dimension L | 6000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 11x25 mm |
| Length | 6000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,42 cm² |
| Static value ly | 6 cm⁴ |
| Static value lz | 6,97 cm⁴ |
| Static value Wy | 2,49 cm³ |
| Static value Wz | 2,88 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
