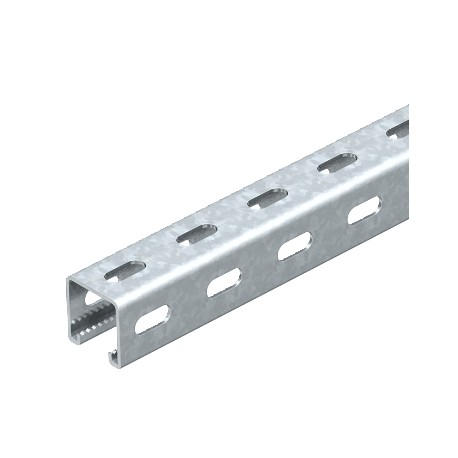

OBO BETTERMANN MSL4141PP6000FS MSL4141PP6000FS 1123012 OBO BETTERMANN Profile rails side perforation, slot 22 mm, 6000x41x41, Strip-galvani.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSL4141PP6000FS 1123012 OBO BETTERMANN Profile rails side perforation, slot 22 mm, 6000x41x41, Strip-galvani..

MSL4141PP6000FS

1123012

OBO BETTERMANN

6 m.

Profile rails side perforation, slot 22 mm, 6000x41x41, Strip-galvanised, DIN EN 10147, Steel, St Profile MSL4141PP6000FS, perfor., groove width 22mm 6000x41x41 Steel, St, strip galvanized, DIN EN 10346 MS4141 mounting rail, slot 22 mm, FS, side perforation. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann profile rails side perforation provides a sturdy mounting backbone for routing cables, supporting conduits, and installing electrical hardware in industrial plants. These channels form the structural basis of modular support systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 4,7729 kg CO2e / 1 Meter
  • Dimension: 6000x41x41
  • Dimension L: 6000 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 41 mm
  • Hole size: 14x28 mm
  • Length: 6000 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 2,45 cm²
  • Static value ly: 5,18 cm⁴
  • Static value lz: 7,56 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate4,7729 kg CO2e / 1 Meter
Dimension6000x41x41
Dimension L6000 mm
Drill hole spacing, centre50 mm
Height41 mm
Hole size14x28 mm
Length6000 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A2,45 cm²
Static value ly5,18 cm⁴
Static value lz7,56 cm⁴
Static value Wy2,51 cm³
Static value Wz2,69 cm³
SurfaceStrip galvanized
Type of perforation3 sides perforated
Version forSingle profile
Width41 mm
With perforationno
With toothingyes
