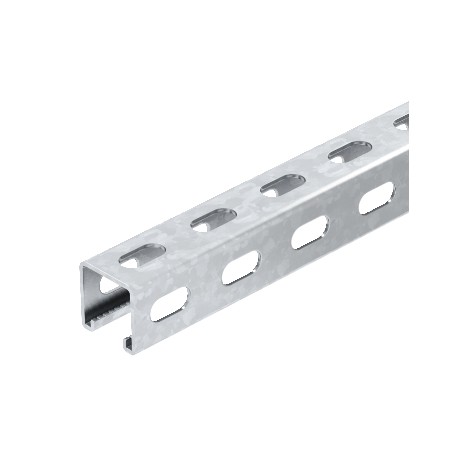

MS 41 LS 3M FS 1122914 OBO BETTERMANN Profile rails side perforation, slot 22 mm, 3000x41x41, Strip-galvanis..
MS4141PP3000FS
1122914
OBO BETTERMANN
3 m.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann MS4141PP3000FS is a profile rails side perforation component designed for routing cables and mounting electrical equipment with enhanced side-access fastening options. Side-perforated channels offer versatile mounting configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 5,886 kg CO2e / 1 Meter
- Dimension: 3000x41x41
- Dimension L: 3000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 3000 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2,5 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,42 cm²
- Static value ly: 6 cm⁴
- Static value lz: 6,97 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 5,886 kg CO2e / 1 Meter |
| Dimension | 3000x41x41 |
| Dimension L | 3000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 3000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,42 cm² |
| Static value ly | 6 cm⁴ |
| Static value lz | 6,97 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Surface | Strip galvanized |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
