View larger
Images are for illustrative purposes only. Please refer to data sheet for details

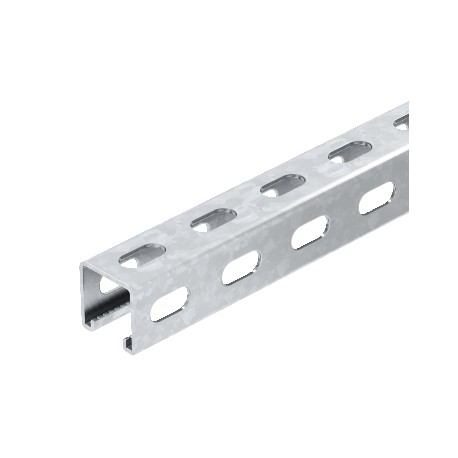

MS 41 LS 1M FT 1122479 OBO BETTERMANN Profile rail side perforation, slot 22 mm, 1000x41x41, Hot-dip galvani..
MS4141PP1000FT
1122479
OBO BETTERMANN
1 Pcs.
Profile rail side perforation, slot 22 mm, 1000x41x41, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
MS4141 mounting rail, slot width 22 mm, FT, side perforation. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 5,2614 kg CO2e / 1 Meter |
| Dimension | 1000x41x41 |
| Dimension L | 1000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 1000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,42 cm² |
| Static value ly | 6 cm⁴ |
| Static value lz | 6,97 cm⁴ |
| Static value Wy | 2,49 cm³ |
| Static value Wz | 2,88 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
