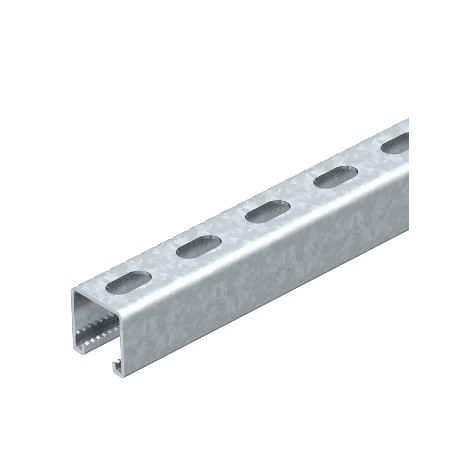

MS4141P0900FT 1122584 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 900x41x41, Hot-dip galvanis..
MS 41 L 900 FT
1122584
OBO BETTERMANN
1 Pcs.
Profile rails perforated, slot width 22 mm, 900x41x41, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Perforated MS4141P0900FT profile, groove width 22mm 900x41x41 Steel, St Hot-dip galvanized, DIN EN ISO 1461
MS4141 mounting rail, slot 22 mm, FT, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
MS 41 L 900 FT profile rails perforated from Obo Bettermann are structured structural support channels used to route and secure electrical cables, conduit, and heavy equipment assemblies across industrial layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 5,2704 kg CO2e / 1 Piece
- Dimension: 900x41x41
- Dimension L: 900 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 900 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2,5 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,97 cm²
- Static value ly: 6,05 cm⁴
- Static value lz: 9,01 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 5,2704 kg CO2e / 1 Piece |
| Dimension | 900x41x41 |
| Dimension L | 900 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 900 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
