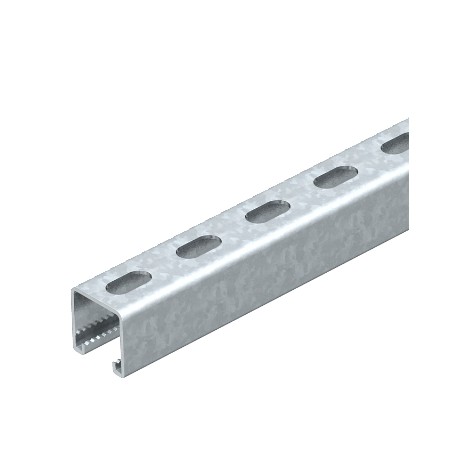

MS 41 L 800 FT 1122576 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 800x41x41, Hot-dip galvani..
MS4141P0800FT
1122576
OBO BETTERMANN
1 Pcs.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann MS4141P0800FT is a profile rail perforated channel designed to provide dependable structural support and mounting flexibility for electrical distribution and cable management setups. Installers utilize these robust metal rails to anchor heavy fixtures and establish organized cable routing paths in industrial facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 4,5813 kg CO2e / 1 Piece
- Dimension: 800x41x41
- Dimension L: 800 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 800 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2,5 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,97 cm²
- Static value ly: 6,05 cm⁴
- Static value lz: 9,01 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 4,5813 kg CO2e / 1 Piece |
| Dimension | 800x41x41 |
| Dimension L | 800 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 800 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
