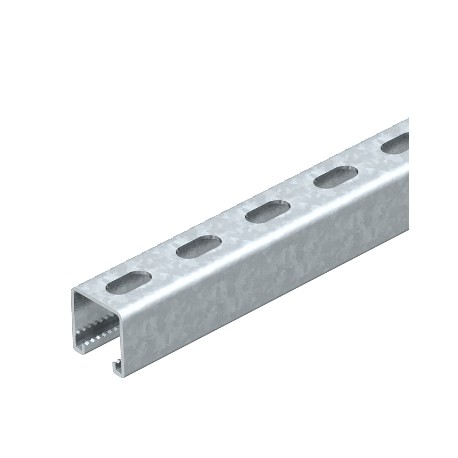

MS4141P0700FT 1122568 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 700x41x41, Hot-dip galvanis..
MS4141P0700FT
1122568
OBO BETTERMANN
1 Pcs.
Profile rails perforated, slot width 22 mm, 700x41x41, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Perforated MS4141P0700FT profile, groove width 22mm 700x41x41 Steel, St Hot-dip galvanized, DIN EN ISO 1461
MS4141 mounting rail, slot 22 mm, FT, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann profile rails perforated (part number MS4141P0700FT) provide durable structural framing support for industrial electrical systems and cable support applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 3,9972 kg CO2e / 1 Piece
- Dimension: 700x41x41
- Dimension L: 700 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 700 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2,5 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,97 cm²
- Static value ly: 6,05 cm⁴
- Static value lz: 9,01 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,9972 kg CO2e / 1 Piece |
| Dimension | 700x41x41 |
| Dimension L | 700 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 700 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
