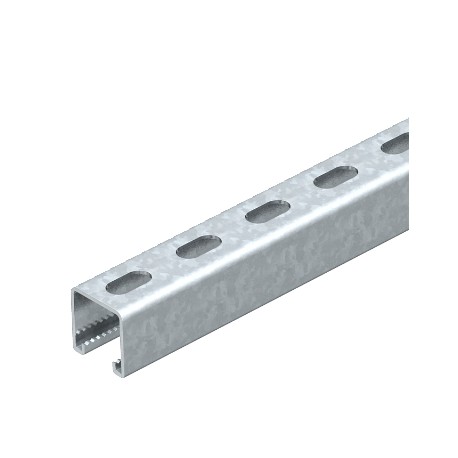

MS 41 L 6M 2 V2A 1122982 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x41x41, Stainless st..
MSL4141P6000A2
1122982
OBO BETTERMANN
6 m.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Constructed from high-grade stainless steel, this Obo Bettermann profile rails perforated unit delivers reliable structural support for cable trays and conduit networks in sanitary or corrosive areas. The long slotted channel accommodates various attachment fittings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 10,2122 kg CO2e / 1 Meter
- Dimension: 6000x41x41
- Dimension L: 6000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 6000 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,45 cm²
- Static value ly: 5,18 cm⁴
- Static value lz: 7,56 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 10,2122 kg CO2e / 1 Meter |
| Dimension | 6000x41x41 |
| Dimension L | 6000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,45 cm² |
| Static value ly | 5,18 cm⁴ |
| Static value lz | 7,56 cm⁴ |
| Static value Wy | 2,51 cm³ |
| Static value Wz | 2,69 cm³ |
| Surface | Bright, treated |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
