View larger
Images are for illustrative purposes only. Please refer to data sheet for details

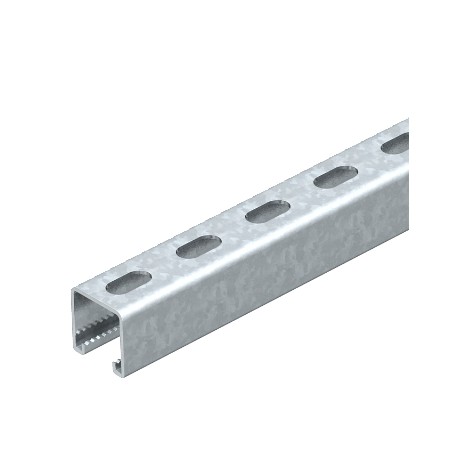

MS 41 L 500 FT 1122533 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 500x41x41, Hot-dip galvani..
MS4141P0500FT
1122533
OBO BETTERMANN
1 Pcs.
Profile rails perforated, slot width 22 mm, 500x41x41, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
MS4141 mounting rail, slot 22 mm, FT, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 2,9366 kg CO2e / 1 Piece |
| Dimension | 500x41x41 |
| Dimension L | 500 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 500 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
