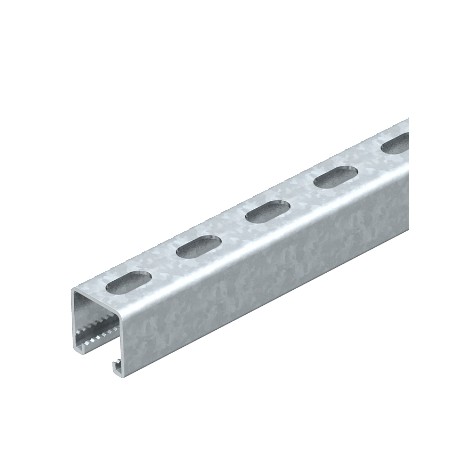

MS 41 L 400 FT 1122525 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 400x41x41, Hot-dip galvani..
MS4141P0400FT
1122525
OBO BETTERMANN
1 Pcs.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann profile rails perforated functions as a versatile installation channel designed to support cable trays, junction boxes, and control equipment. Installers utilize slotted framing channels to build customized support frameworks on-site.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 2,3035 kg CO2e / 1 Piece
- Dimension: 400x41x41
- Dimension L: 400 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 400 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2,5 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,97 cm²
- Static value ly: 6,05 cm⁴
- Static value lz: 9,01 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 2,3035 kg CO2e / 1 Piece |
| Dimension | 400x41x41 |
| Dimension L | 400 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 400 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2,5 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
