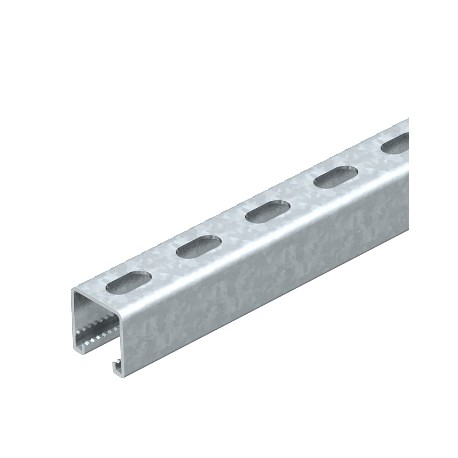

OBO BETTERMANN MSL4141P3000A4 MS 41 L 3M 2 V4A 1122990 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x41, Stainless st.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 41 L 3M 2 V4A 1122990 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x41, Stainless st..

MSL4141P3000A4

1122990

OBO BETTERMANN

3 m.

Profile rails perforated, slot width 22 mm, 3000x41x41, Stainless steel, grade 316 Ti, VA, 1.4571 MS4141 mounting rail, slot 22 mm, A4, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann MSL4141P3000A4 is a profile rails perforated component utilized to secure and support wiring harnesses, cable trays, and modular assembly structures within industrial installations. These slotted channels allow fast, flexible fastening of various hardware elements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 10,1434 kg CO2e / 1 Meter
  • Dimension: 3000x41x41
  • Dimension L: 3000 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 41 mm
  • Hole size: 14x28 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4571
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 2,45 cm²
  • Static value ly: 5,18 cm⁴
  • Static value lz: 7,56 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate10,1434 kg CO2e / 1 Meter
Dimension3000x41x41
Dimension L3000 mm
Drill hole spacing, centre50 mm
Height41 mm
Hole size14x28 mm
Length3000 mm
Maintain electrical functionsno
MaterialStainless steel 1.4571
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A2,45 cm²
Static value ly5,18 cm⁴
Static value lz7,56 cm⁴
Static value Wy2,51 cm³
Static value Wz2,69 cm³
SurfaceBright, treated
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
