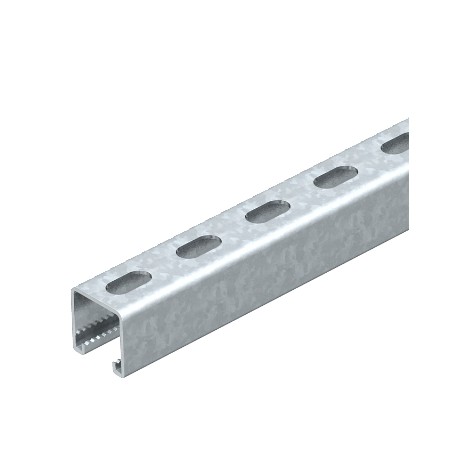

MS 41 L 3M 2 V2A 1122980 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x41, Stainless st..
MSL4141P3000A2
1122980
OBO BETTERMANN
3 m.
Profile rails perforated, slot width 22 mm, 3000x41x41, Stainless steel, grade 304, VA, 1.4301
MS4141 mounting rail, slot 22 mm, A2, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann profile rails perforated (part number MSL4141P3000A2) provide a robust stainless steel mounting framework for industrial cabling systems, ensuring reliable support across harsh environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 10,1756 kg CO2e / 1 Meter
- Dimension: 3000x41x41
- Dimension L: 3000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,45 cm²
- Static value ly: 5,18 cm⁴
- Static value lz: 7,56 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 10,1756 kg CO2e / 1 Meter |
| Dimension | 3000x41x41 |
| Dimension L | 3000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,45 cm² |
| Static value ly | 5,18 cm⁴ |
| Static value lz | 7,56 cm⁴ |
| Static value Wy | 2,51 cm³ |
| Static value Wz | 2,69 cm³ |
| Surface | Bright, treated |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
