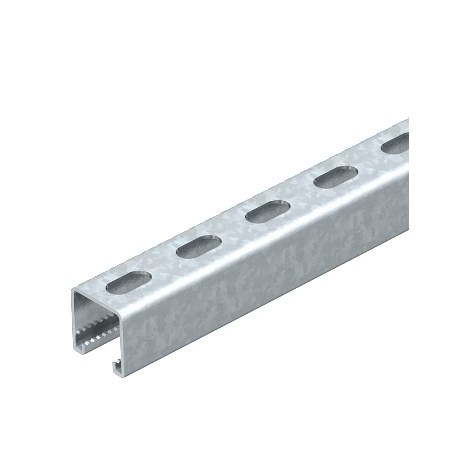

OBO BETTERMANN MS4141P0200FT MS 41 L 200 FT 1122509 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 200x41x41, Hot-dip galvani.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 41 L 200 FT 1122509 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 200x41x41, Hot-dip galvani..

MS4141P0200FT

1122509

OBO BETTERMANN

1 Pcs.

Profile rails perforated, slot width 22 mm, 200x41x41, Hot-dip galvanised, DIN EN ISO 1461, Steel, St MS4141 mounting rail, slot 22 mm, FT, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann MS4141P0200FT profile rails perforated offer a modular foundation for securing cable trays, pipes, and electrical components in various facility layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,1253 kg CO2e / 1 Piece
  • Dimension: 200x41x41
  • Dimension L: 200 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 41 mm
  • Hole size: 14x28 mm
  • Length: 200 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2,5 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 2,97 cm²
  • Static value ly: 6,05 cm⁴
  • Static value lz: 9,01 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate1,1253 kg CO2e / 1 Piece
Dimension200x41x41
Dimension L200 mm
Drill hole spacing, centre50 mm
Height41 mm
Hole size14x28 mm
Length200 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2,5 mm
Profile shapeC profile
Slot width22 mm
Static value A2,97 cm²
Static value ly6,05 cm⁴
Static value lz9,01 cm⁴
Static value Wy2,91 cm³
Static value Wz4,4 cm³
SurfaceHot-dip galvanised
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
