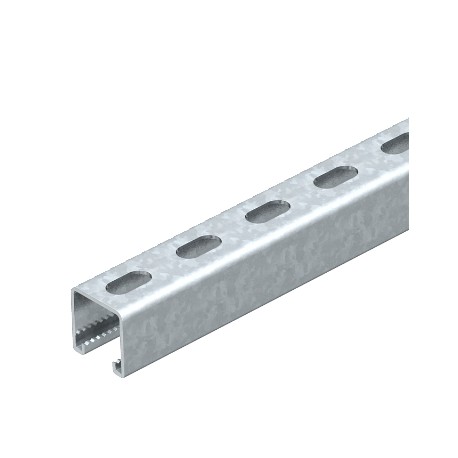

MS 41 L 1M 2 V4A 1122988 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 1000x41x41, Stainless st..
MSL4141P1000A4
1122988
OBO BETTERMANN
1 Pcs.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Obo Bettermann, part number MSL4141P1000A4 is a profile rail perforated channel constructed from high-grade stainless steel to deliver superior corrosion resistance in harsh industrial environments. These slotted C-profiles provide a dependable structural framework for mounting electrical components, junction boxes, and cable support systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 10,1434 kg CO2e / 1 Meter
- Dimension: 1000x41x41
- Dimension L: 1000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 1000 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,45 cm²
- Static value ly: 5,18 cm⁴
- Static value lz: 7,56 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 10,1434 kg CO2e / 1 Meter |
| Dimension | 1000x41x41 |
| Dimension L | 1000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 1000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,45 cm² |
| Static value ly | 5,18 cm⁴ |
| Static value lz | 7,56 cm⁴ |
| Static value Wy | 2,51 cm³ |
| Static value Wz | 2,69 cm³ |
| Surface | Bright, treated |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
