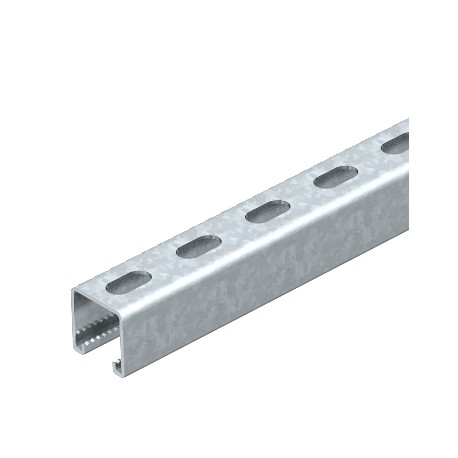

OBO BETTERMANN MSL4141P1000A2 MSL4141P1000A2 1122978 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 1000x41x41, Stainless stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSL4141P1000A2 1122978 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 1000x41x41, Stainless stee..

MSL4141P1000A2

1122978

OBO BETTERMANN

1 Pcs.

Profile rails perforated, slot width 22 mm, 1000x41x41, Stainless steel, grade 304, VA, 1.4301 Perforated MSL4141P1000A2 profile, groove width 22mm 1000x41x41 Stainless steel 1.4301, A2, 1.4301 Polished, with subsequent treatment MS4141 mounting rail, slot 22 mm, A2, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Profile rails perforated from Obo Bettermann, item number MSL4141P1000A2, provide durable metal framing channels used to organize and support electrical conduits, piping, and mechanical hardware in commercial facilities. Such slotted channels allow flexible fastening configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 10,1491 kg CO2e / 1 Meter
  • Dimension: 1000x41x41
  • Dimension L: 1000 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 41 mm
  • Hole size: 14x28 mm
  • Length: 1000 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 2,45 cm²
  • Static value ly: 5,18 cm⁴
  • Static value lz: 7,56 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate10,1491 kg CO2e / 1 Meter
Dimension1000x41x41
Dimension L1000 mm
Drill hole spacing, centre50 mm
Height41 mm
Hole size14x28 mm
Length1000 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A2,45 cm²
Static value ly5,18 cm⁴
Static value lz7,56 cm⁴
Static value Wy2,51 cm³
Static value Wz2,69 cm³
SurfaceBright, treated
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
