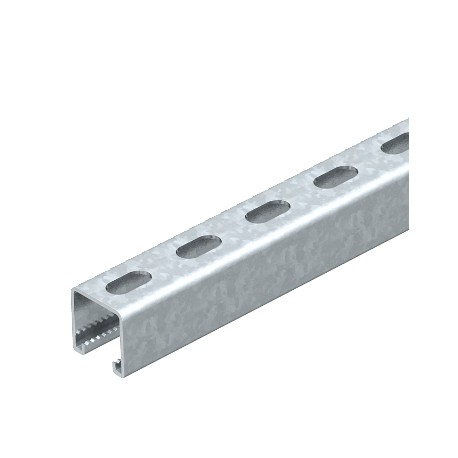

OBO BETTERMANN MSL4141P1000FT MS 41 L 1M 2 FT 1122962 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 1000x41x41, Hot-dip galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 41 L 1M 2 FT 1122962 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 1000x41x41, Hot-dip galva..

MSL4141P1000FT

1122962

OBO BETTERMANN

1 m.

Profile rails perforated, slot width 22 mm, 1000x41x41, Hot-dip galvanised, DIN EN ISO 1461, Steel, St MSL4141 mounting rail, slot 22 mm, FT, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for flexible fastening applications, the Obo Bettermann profile rails perforated act as versatile mounting channels for electrical wiring systems, pipe supports, and mechanical brackets. Installers frequently depend on slotted metal channels to simplify fastening adjustments on-site. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 4,4212 kg CO2e / 1 Meter
  • Dimension: 1000x41x41
  • Dimension L: 1000 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 41 mm
  • Hole size: 14x28 mm
  • Length: 1000 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 2,45 cm²
  • Static value ly: 5,18 cm⁴
  • Static value lz: 7,56 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate4,4212 kg CO2e / 1 Meter
Dimension1000x41x41
Dimension L1000 mm
Drill hole spacing, centre50 mm
Height41 mm
Hole size14x28 mm
Length1000 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A2,45 cm²
Static value ly5,18 cm⁴
Static value lz7,56 cm⁴
Static value Wy2,51 cm³
Static value Wz2,69 cm³
SurfaceHot-dip galvanised
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
