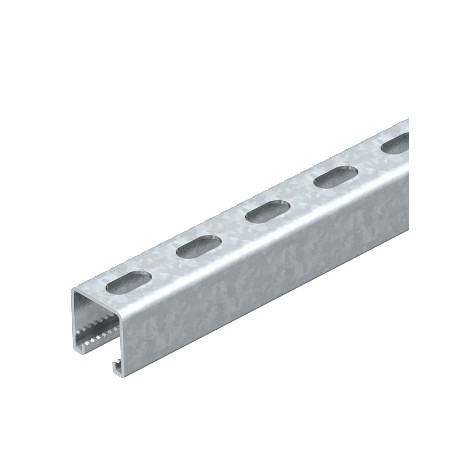

MS 41 L 1M 2 FS 1122970 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 1000x41x41, Strip-galvani..
MSL4141P1000FS
1122970
OBO BETTERMANN
1 Pcs.
Profile rails perforated, slot width 22 mm, 1000x41x41, Strip-galvanised, DIN EN 10147, Steel, St
MSL4141 mounting rail, slot 22 mm, FS, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
MSL4141P1000FS profile rails perforated from Obo Bettermann offer a structured channel system for securing wiring conduits, cable trays, and modular automation frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 4,8107 kg CO2e / 1 Meter
- Dimension: 1000x41x41
- Dimension L: 1000 mm
- Drill hole spacing, centre: 50 mm
- Height: 41 mm
- Hole size: 14x28 mm
- Length: 1000 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 2,45 cm²
- Static value ly: 5,18 cm⁴
- Static value lz: 7,56 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 4,8107 kg CO2e / 1 Meter |
| Dimension | 1000x41x41 |
| Dimension L | 1000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 41 mm |
| Hole size | 14x28 mm |
| Length | 1000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 2,45 cm² |
| Static value ly | 5,18 cm⁴ |
| Static value lz | 7,56 cm⁴ |
| Static value Wy | 2,51 cm³ |
| Static value Wz | 2,69 cm³ |
| Surface | Strip galvanized |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
