View larger
Images are for illustrative purposes only. Please refer to data sheet for details

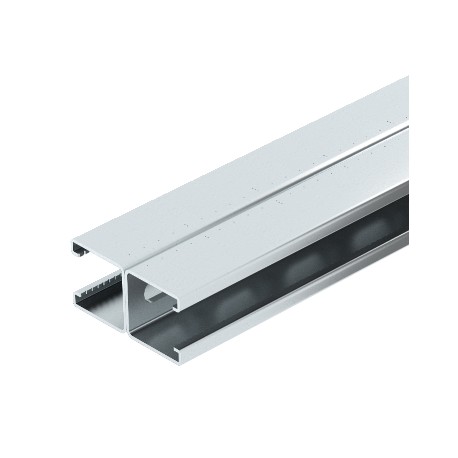

MS4182P6000A2 1122684 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x82x41, Stainless steel..
MS4182P6000A2
1122684
OBO BETTERMANN
6 m.
Profile rails perforated, slot width 22 mm, 6000x82x41, Stainless steel, grade 304, VA, 1.4301
Profile MS4182P6000A2, perfor., slot width 22mm 6000x41x82 Stainless steel 1.4301, A2, 1.4301, Polished, with subsequent treatment
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Static values:
A = 4,8569 cm2
ly = 30,6909 cm⁴
lz = 15,1124 cm⁴
Wy = 2,51257 cm3
Wz = 2,68608 cm3
A = 4,8569 cm2
ly = 30,6909 cm⁴
lz = 15,1124 cm⁴
Wy = 2,51257 cm3
Wz = 2,68608 cm3
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 6000 mm |
| Width (EF000008) | 41 mm |
| Height (EF000040) | 82 mm |
| Material thickness (EF000386) | 2 mm |
| Profile shape (EF005179) | C-profile |
| Type of perforation (EF004147) | Rim perforated |
| With toothing (EF000571) | Yes |
| Area moment of inertia Iy (EF012513) | 30.69 cm4 |
| Area of inertia Iz (EF012514) | 15.11 cm4 |
| Moment of resistance Wy (EF012503) | 2.51 cm³ |
| Moment of resistance Wz (EF012504) | 2.69 cm³ |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Rustproof and acidproof steel |
| Surface protection (EF000139) | Other |
| Weight (EF000167) | 4.02 kg |
