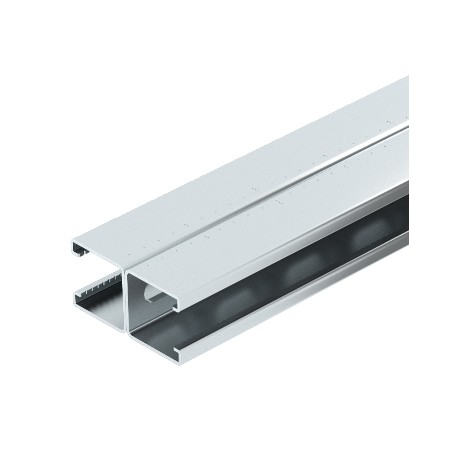

OBO BETTERMANN MS4182P3000A2 MS4182P3000A2 1122682 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x82x41, Stainless steel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS4182P3000A2 1122682 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x82x41, Stainless steel..

MS4182P3000A2

1122682

OBO BETTERMANN

3 m.

Profile rails perforated, slot width 22 mm, 3000x82x41, Stainless steel, grade 304, VA, 1.4301 Profile MS4182P3000A2, perfor., slot width 22mm 3000x41x82 Stainless steel 1.4301, A2, 1.4301, Polished, with subsequent treatment

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Supplied as Profile rails perforated, slot width 22 mm, 3000x82x41, Stainless steel, grade 304, VA, 1.., the Obo Bettermann MS4182P3000A2 functions as a heavy-duty mounting rail designed to support complex cable tray runs and industrial utility lines. Slotted metal rails are widely implemented in industrial facilities to create adjustable attachment bases for electrical distribution and mechanical support systems. Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: MS4182P3000A2
  • Catalogue code: 1122682
  • Catalogue title: MS4182P3000A2 1122682 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x82x41, Stainless steel..
  • Product description: Static values: A = 4,8569 cm2 ly = 30,6909 cm⁴ lz = 15,1124 cm⁴ Wy = 2,51257 cm3 Wz = 2,68608 cm3
  • Manufacturer summary: Profile rails perforated, slot width 22 mm, 3000x82x41, Stainless steel, grade 304, VA, 1.4301 Profile MS4182P3000A2, perfor., slot width 22mm 3000x41x82 Stainless steel 1.4301, A2, 1.4301, Polished, with subsequent trea

More info

▲
Static values:
A = 4,8569 cm2
ly = 30,6909 cm⁴
lz = 15,1124 cm⁴
Wy = 2,51257 cm3
Wz = 2,68608 cm3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
