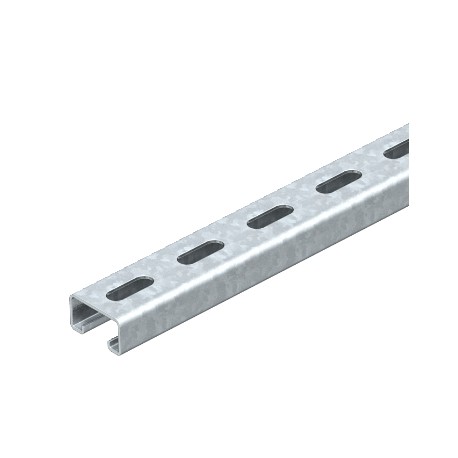

MS 21 L 800 FT 1122939 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 800x41x21, Hot-dip galvani..
MS 21 L 800 FT
1122939
OBO BETTERMANN
1 Pcs.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann MS 21 L 800 FT is a profile rails perforated structure used to anchor electrical equipment, mount enclosures, and organize cable routes within industrial plants. Perforated profiles allow fast, adjustable installation configuration. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 2,535 kg CO2e / 1 Piece
- Dimension: 800x41x21
- Dimension L: 800 mm
- Drill hole spacing, centre: 50 mm
- Height: 21 mm
- Hole size: 14x28 mm
- Length: 800 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 1,65 cm²
- Static value ly: 0,95 cm⁴
- Static value lz: 4,51 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 2,535 kg CO2e / 1 Piece |
| Dimension | 800x41x21 |
| Dimension L | 800 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 21 mm |
| Hole size | 14x28 mm |
| Length | 800 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 1,65 cm² |
| Static value ly | 0,95 cm⁴ |
| Static value lz | 4,51 cm⁴ |
| Static value Wy | 0,89 cm³ |
| Static value Wz | 2,2 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
