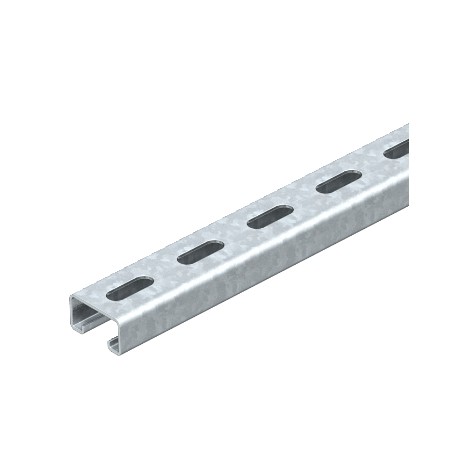

MS 21 L 6M FT 1122926 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x41x21, Hot-dip galvani..
MS4121P6000FT
1122926
OBO BETTERMANN
6 m.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann MS4121P6000FT is a Profile rails perforated used extensively in electrical and mechanical engineering to mount cables, junction boxes, and modular control equipment. These versatile slotted rails allow technicians to easily fasten components along any point of the run.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 3,1821 kg CO2e / 1 Meter
- Dimension: 6000x41x21
- Dimension L: 6000 mm
- Drill hole spacing, centre: 50 mm
- Height: 21 mm
- Hole size: 14x28 mm
- Length: 6000 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 1,65 cm²
- Static value ly: 0,95 cm⁴
- Static value lz: 4,51 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,1821 kg CO2e / 1 Meter |
| Dimension | 6000x41x21 |
| Dimension L | 6000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 21 mm |
| Hole size | 14x28 mm |
| Length | 6000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 1,65 cm² |
| Static value ly | 0,95 cm⁴ |
| Static value lz | 4,51 cm⁴ |
| Static value Wy | 0,89 cm³ |
| Static value Wz | 2,2 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
