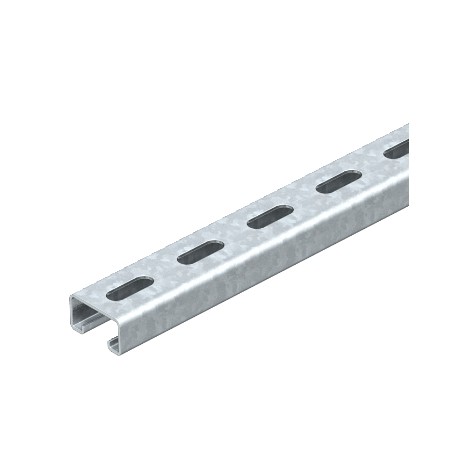

OBO BETTERMANN MS4121P6000FS MS4121P6000FS 1122922 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x41x21, Strip-galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS4121P6000FS 1122922 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x41x21, Strip-galvanise..

MS4121P6000FS

1122922

OBO BETTERMANN

6 m.

Profile rails perforated, slot width 22 mm, 6000x41x21, Strip-galvanised, DIN EN 10147, Steel, St Profile MS4121P6000FS, perfor., slot width 22mm 6000x41x21 Steel, St, strip galvanized, DIN EN 10346 MS4121 mounting rail, slot 22 mm, FS, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as MS4121P6000FS 1122922 Obo Bettermann profile rails perforated, slot width 22 mm, strip-galvanised, this channel offers adaptable fastening for cable routing and panel building. Slotted support channels enable secure attachment of brackets and clamps in commercial setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 6000 mm
  • Width (EF000008): 41 mm
  • Height (EF000040): 21 mm
  • Material thickness (EF000386): 2 mm
  • Profile shape (EF005179): C-profile
  • Type of perforation (EF004147): Slotted
  • With toothing (EF000571): Yes
  • Area moment of inertia Iy (EF012513): 0.95 cm4
  • Area of inertia Iz (EF012514): 4.51 cm4
  • Moment of resistance Wy (EF012503): 0.89 cm³
  • Moment of resistance Wz (EF012504): 2.2 cm³
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised
  • Weight (EF000167): 1.41 kg

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate3,457 kg CO2e / 1 Meter
Dimension6000x41x21
Dimension L6000 mm
Drill hole spacing, centre50 mm
Height21 mm
Hole size14x28 mm
Length6000 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
SurfaceStrip galvanized
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
