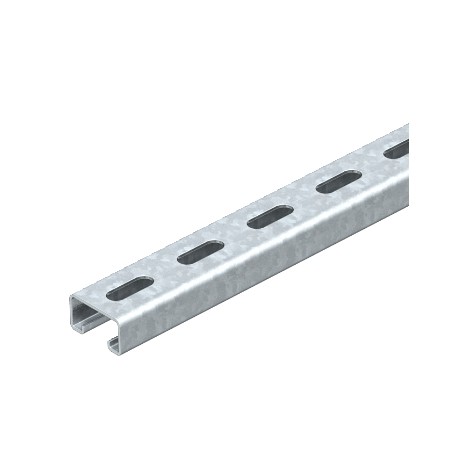

OBO BETTERMANN MS4121P0400FT MS 21 L 400 FT 1122935 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 400x41x21, Hot-dip galvani.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 21 L 400 FT 1122935 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 400x41x21, Hot-dip galvani..

MS4121P0400FT

1122935

OBO BETTERMANN

1 Pcs.

Profile rails perforated, slot width 22 mm, 400x41x21, Hot-dip galvanised, DIN EN ISO 1461, Steel, St MS4121 mounting rail, slot 22 mm, FT, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann MS4121P0400FT profile rails perforated function as versatile mounting channels for supporting cable runs, junction boxes, and light industrial hardware.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,279 kg CO2e / 1 Piece
  • Dimension: 400x41x21
  • Dimension L: 400 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 21 mm
  • Hole size: 14x28 mm
  • Length: 400 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 1,65 cm²
  • Static value ly: 0,95 cm⁴
  • Static value lz: 4,51 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate1,279 kg CO2e / 1 Piece
Dimension400x41x21
Dimension L400 mm
Drill hole spacing, centre50 mm
Height21 mm
Hole size14x28 mm
Length400 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
SurfaceHot-dip galvanised
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
