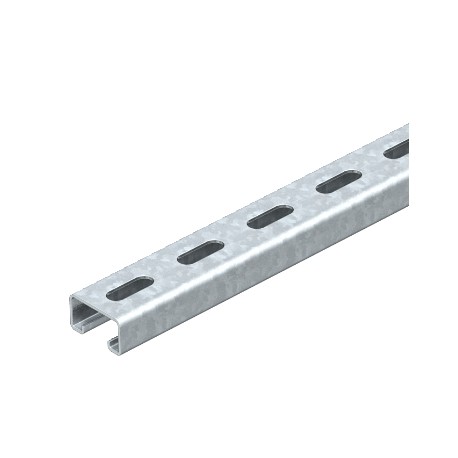

OBO BETTERMANN MS4121P3000A4 MS 21 L 3M V4A 1122931 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x21, Stainless stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 21 L 3M V4A 1122931 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x21, Stainless stee..

MS4121P3000A4

1122931

OBO BETTERMANN

3 m.

Profile rails perforated, slot width 22 mm, 3000x41x21, Stainless steel, grade 316 Ti, VA, 1.4571 MS4121 mounting rail, slot 22 mm, A4, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Profile rails perforated from Obo Bettermann, part number MS4121P3000A4, are standard metal framing channels utilized extensively in electrical routing and mechanical support assemblies. Installers rely on these slotted channels to secure conduits, support distribution boxes, and create custom suspension frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 7,323 kg CO2e / 1 Meter
  • Dimension: 3000x41x21
  • Dimension L: 3000 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 21 mm
  • Hole size: 14x28 mm
  • Length: 3000 mm
  • Maintain electrical functions: yes
  • Material: Stainless steel 1.4571
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 1,65 cm²
  • Static value ly: 0,95 cm⁴
  • Static value lz: 4,51 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate7,323 kg CO2e / 1 Meter
Dimension3000x41x21
Dimension L3000 mm
Drill hole spacing, centre50 mm
Height21 mm
Hole size14x28 mm
Length3000 mm
Maintain electrical functionsyes
MaterialStainless steel 1.4571
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
SurfaceBright, treated
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
